Power HD have introduced their brand new red color servos for RC airplane usage. [2021-08-13 14:41:51]

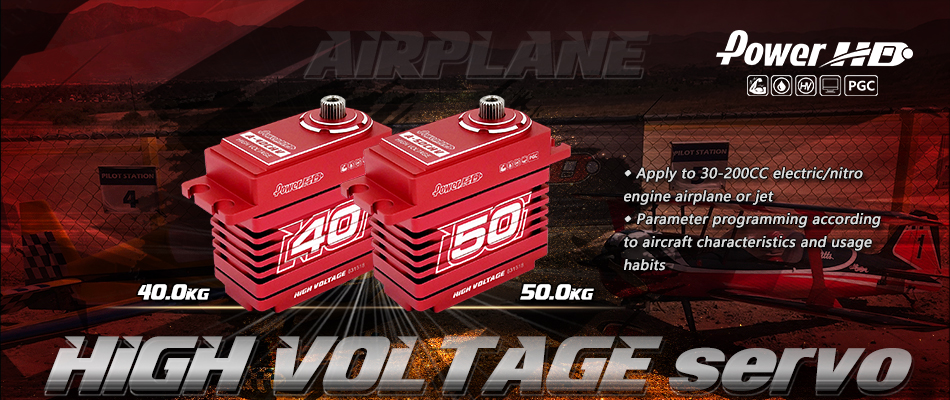

All-alloy case HV servos A-40CHV and A-50CHV,apply to 30-200CC engine airplane or jet.
* Full CNC red case
* 7075+416 imported steel gear
* Japanese potentiometer
* high voltage coreless motor,compatible with 6.0-8.4V
* programmable series, could set the servo datas with offline programming card



A-40CHV Specs:
Torque(6.0V): 25.0 kg-cm ( 347.2 oz/in)
Torque(7.4V): 35.0 kg-cm ( 486.1 oz/in)
Torque(8.4V): 40.0 kg-cm ( 555.5 oz/in)
Speed: 0.14 sec (6.0V)│0.12 sec (7.4V)│0.10 sec (8.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Weight: 80 g (2.82 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Coreless Motor
Gear Type:Steel & Aluminum
Operating Temperature:-20℃~60℃
Working frequence:1520μs / 333hz
Size:40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)


A-50CHV Specs:
Torque(6.0V): 35.0 kg-cm ( 486.1 oz/in)
Torque(7.4V): 45.0 kg-cm ( 625.0 oz/in)
Torque(8.4V): 50.0 kg-cm ( 694.4 oz/in)
Speed: 0.19 sec (6.0V)│0.17 sec (7.4V)│0.16 sec (8.4V)
Operating Voltage:6.0 ~ 8.4V DC Volts
Weight: 80 g (2.82 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Coreless Motor
Gear Type:Steel & Aluminum
Operating Temperature:-20℃~60℃
Working frequence:1520μs / 333hz
Size:40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
