Power HD have announced the release of HV brushless high torque servos T50-BHV, T70-BHV [2022-01-19 13:15:13]

Power HD have announced the release of HV brushless high torque servos T50-BHV, T70-BHV.

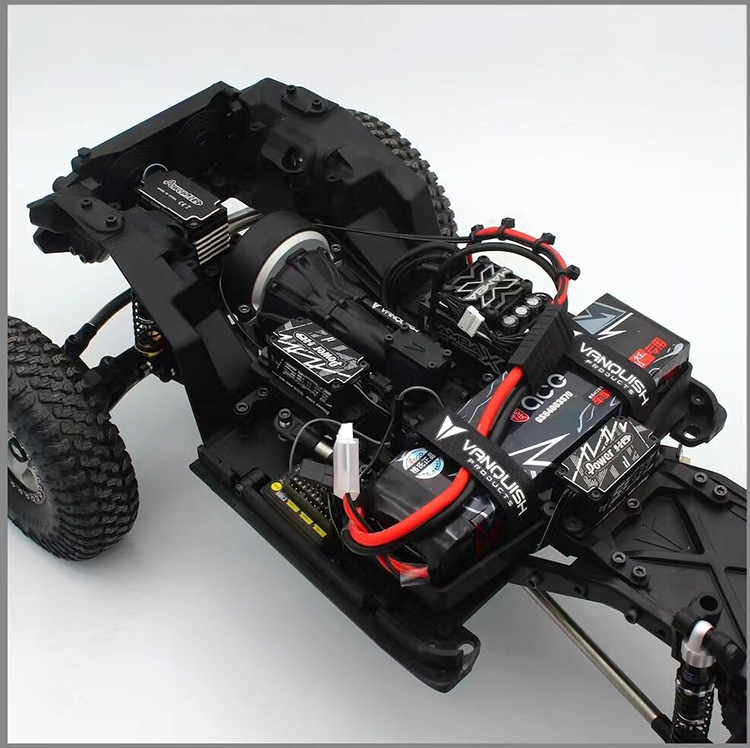

Both servos feature all-aluminium housings, with high-power brushless motor as the core power, offer amazing torque output. American imported ST32-bit MCU control chip ensure superior servo performance.T50 is ideal for 1/8th nitro off-road while T70 is ideal for large truggy, rock crawler and 1/5th scale cars. The products are coming soon. Stay tuned!


T50-BHV Specs:
Torque(6.0V): 39.0 kg-cm / (541.6 oz/in)
Torque(7.4V): 40.0 kg-cm / (555.5 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Speed: 0.092 sec (6.0V) │ 0.074 sec (7.4V)
Speed: 0.065 sec (8.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Blocking Current:4.4A
Weight: 83 g (2.93 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Brushless Motor
Gear Type:Steel
Operating Temperature:-20℃~60℃
Working frequence:1520μs / 333hz
Size:40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)

T70-BHV Specs:
Torque(6.0V): 55.0 kg-cm / (763.8 oz/in)
Torque(7.4V): 60.0 kg-cm / (833.2 oz/in)
Torque(8.4V): 70.0 kg-cm / (972.1 oz/in)
Speed: 0.160 sec (6.0V) │ 0.140 sec (7.4V)
Speed: 0.120 sec (8.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Blocking Current:4.2A
Weight: 83 g (2.93 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Brushless Motor
Gear Type:Steel
Operating Temperature:-20℃~60℃
Working frequence:1520μs / 333hz
Size:40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
