April New Arrival! Professional winch servo W50 and 12V high voltage crawler servo T70-12V. [2022-04-06 14:14:38]


W50-360 degree winch servo, with maximum output torque of 50KG/cm, applicable to VP-VS4-10 chassis and other modified winch models.This full aluminum case winch servo equipped with steel towing rope, metal spool and hook, etc. It could be easily retractable and controlled through a multi-channel receiver.


T70-12V high voltage steering servo, with maximum output torque of 70KG/cm, separate wiring for signal and power supply. Directly connect to the balance connector of 3S Lipo battery for power supply, which could offer sufficient current for the servo to play the best performance. This T70-12V servo is ideal for 1/5th, 1/8th, 1/10th crawler and monster.


W50-360° Specs:
Torque(6.0V): 35.0 kg-cm ( 486.1 oz/in)
Torque(7.4V): 45.0 kg-cm ( 625.0 oz/in)
Torque(8.4V): 50.0 kg-cm ( 694.4 oz/in)
Speed: 1.3 sec/360° (6.0V)│1.0 sec/360° (7.4V)│0.9 sec/360° (8.4V)
Operating Voltage: 6.0 ~ 8.4V DC Volts
Weight: 80 g (2.82 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Coreless Motor
Gear Type: Steel
Operating Temperature: -20℃~60℃
Working frequence: 1520μs / 333hz
Size: 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)

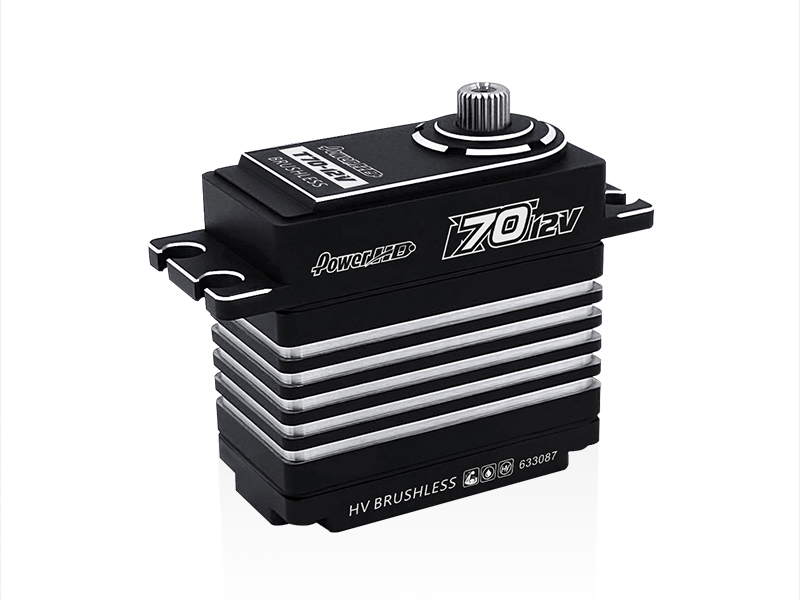

T70-12V Specs:
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Torque(11V) : 60.0 kg-cm / (833.2 oz/in)
Torque(12V) : 75.0 kg-cm / (1041.6 oz/in)
Speed: 0.18 sec (8.4V) │ 0.12 sec (11V) │ 0.10 sec (12V)
Operating Voltage:8.4 ~ 12 DC Volts
Weight: 83 g (2.93 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Brushless Motor
Gear Type:Steel
Operating Temperature:-20℃~60℃
Working frequence:1520μs / 333hz
Size:40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
